Quick Chiller Size Guide
Start with the actual water volume, then check the model’s rated cooling capacity and cooling-time reference. The FOCEEDO ranges below are model-specific starting points; heat, insulation, target temperature and daily use still affect the choice.
Match HP to Water Volume
- E03 — 1/3 HP: 200–300 L (53–79 US gal).
- E05 — 1/2 HP: 300–500 L (79–132 US gal).
- E10 — 1 HP: 500–700 L (132–185 US gal).
- E20 — 2 HP: 700–1,000 L (185–264 US gal).
Choose More Capacity When
- The tub is outdoors or exposed to temperatures above 90°F / 32°C.
- You want to cool the water faster or maintain a lower target temperature.
- Several people use the plunge back-to-back.
- The tub has weak insulation, no fitted cover, or more than 150 gallons / 570 L of water.
Start With Water Volume
More water requires more heat removal for the same temperature drop, so the first cooldown takes longer with the same chiller. Once the water is cold, holding energy depends mainly on heat entering the system, not water volume alone.
Measure the normal fill level rather than using the tub’s maximum advertised capacity. Leave displacement space for the person using it.
200–300 L Tubs
FOCEEDO E03 is recommended for 200–300 L. For warmer conditions or faster cooling, compare its reference cooling time with a higher-capacity model before buying.
300–500 L Tubs
FOCEEDO E05 is recommended for 300–500 L. A covered, insulated tub reduces heat gain; ask for cooling-time data at your target temperature if the setup will run outdoors in summer.
500–700 L Tubs
FOCEEDO E10 is recommended for 500–700 L. Check how long the initial fill will take to cool and how quickly the system needs to recover between users.
700–1,000 L Tubs
FOCEEDO E20 is recommended for 700–1,000 L. Beyond that range, or with frequent back-to-back users, request a load assessment rather than extrapolating from horsepower.
Compare HP Classes
Horsepower gives you a rough sense of compressor strength. It helps you compare chiller classes, but it should not be the only number you use.
A better sizing decision looks at horsepower together with actual cooling capacity, tub volume, temperature target, and installation conditions.
1/3 HP Chillers for Compact Tubs
A compact chiller can suit a small home tub where several hours of initial cooling are acceptable. Compare actual dimensions and noise ratings; the horsepower label alone does not establish either noise or energy use.
The tradeoff is slower cooldown and less reserve power. If the tub is too large or the air temperature is high, a 1/3 HP unit may need to run for long periods without reaching the temperature you want.
1/2 HP Chillers Balanced Choice
A 1/2 HP chiller is the balanced choice for many home users. It fits standard single-person cold plunges, moderate climates, and regular daily routines.
For example, FOCEEDO E05 is rated for 300–500 L. Other 1/2 HP models may have different cooling capacity, so use their own volume and temperature references.
1 HP Chillers Heavy Duty
A 1 HP chiller is better for larger tubs, outdoor setups, hot climates, and users who want faster cooldown. It also gives better recovery when several people use the same water.
A colder target increases the temperature drop and heat gain from warm surroundings. Compare documented performance at that target; smaller chillers can also reach low temperatures when properly matched.
2 HP Chillers for Larger Volumes
A 2 HP model can provide more capacity for a larger tub, but the label does not establish continuous commercial-duty suitability. FOCEEDO E20 is not a dedicated commercial model; discuss repeated-use requirements with the supplier.
For a small home tub, compare the extra purchase cost and space with the shorter cooling time you would actually use.
1/4 HP vs 1/2 HP vs 1 HP Chillers
These labels help group products, but do not provide a universal volume, noise or electricity ranking. Compare the exact machines under similar water and air temperatures.
If you are choosing between two neighboring sizes, use the table below as a starting point, then size for the hardest condition your tub will face.
| Comparison | 1/4 HP | 1/2 HP | 1 HP |
|---|---|---|---|
| Volume reference | Use the exact model’s specification | FOCEEDO E05: 300–500 L | FOCEEDO E10: 500–700 L |
| Cooling capacity | Request rated output | E05: 1,400 W | E10: 3,150 W |
| Decision point | Is its first cooldown fast enough? | Does it meet the target in summer? | Will the extra capacity save useful time? |
| Noise and running cost | Check measurements | Check measurements | Check measurements |
1/4 HP vs 1/2 HP Small or Balanced
For a 1/4 HP chiller, use the manufacturer’s stated water volume and cooling-time data. There is no reliable universal rule that every 1/4 HP model will handle a 300 L tub.
When the 1/2 HP model has higher rated cooling capacity under the same conditions, it can remove heat faster. Check whether that time saving matters for your fill volume and schedule.
1/2 HP vs 1 HP Balanced or Heavy Duty
FOCEEDO E05 provides a 1/2 HP reference for 300–500 L, while E10 provides a 1 HP reference for 500–700 L. The ranges overlap at the boundary; cooling speed and summer conditions help decide there.
A higher-capacity model may also serve a smaller tub when faster cooling is important. Compare the actual cooling time and total energy per cooldown, rather than assuming more horsepower always means a higher bill.
For a closer look at how fast each class cools, see how long a cold plunge chiller takes to cool water. Next, check BTU/hr, not just horsepower.
Check BTU, Not Just HP
Horsepower is easy to understand, so many buyers stop there. But the more useful performance number is often BTU/hr, which tells you how much heat the chiller can remove from water each hour.
Two chillers with the same horsepower can perform differently if their compressor, heat exchanger, airflow, pump flow, and refrigeration system are not equally efficient.
HP Is Only a Label
Horsepower describes a compressor class rather than the heat removed from the water. Use rated cooling output and a documented cooldown test to compare machines.
BTU Shows Heat Removal
Cooling capacity may be listed in watts or BTU/hr. FOCEEDO’s specification sheet lists the following cooling outputs; 1 W is approximately 3.412 BTU/hr.
| Model | Cooling Output | Approx. BTU/hr |
|---|---|---|
| E03 | 800 W | 2,730 |
| E05 | 1,400 W | 4,777 |
| E10 | 3,150 W | 10,748 |
| E20 | 4,980 W | 16,992 |
These are rated cooling outputs, not electrical input power. Compare ratings at the same water and ambient temperatures; actual output changes with operating conditions.
Same HP Can Feel Different
Heat exchanger design, condenser airflow, water flow and operating temperatures all affect delivered cooling. Two machines with the same HP label need not cool the same tub in the same time.
Set Your Target Temperature
Your target water temperature changes the sizing decision. Holding water at 55°F / 13°C is much easier than holding it at 39°F / 4°C.
The colder you go, the harder the chiller must work. Each degree near the low end requires more cooling effort, especially in warm air.
50–55°F Is Easier
If your goal is light cold exposure, nervous system practice, or beginner-friendly plunging, 50–55°F / 10–13°C is easier to maintain.
A smaller chiller may be enough if the tub is compact and indoors. This range is also more forgiving if your insulation is not perfect.
40–50°F Needs More Power
Many cold plunge users aim for 40–50°F / 4–10°C. This range feels clearly cold and is common for regular recovery routines.
Check the chosen model’s cooling-time data at your intended temperature. Water volume, insulation and summer air temperature determine whether its capacity is adequate.
Below 40°F Is Demanding
Water below 40°F / 4°C is much harder to reach and maintain. It requires stronger cooling, better insulation, good circulation, and more time.
If this is your target, do not size your chiller for ideal conditions. Size it for your hottest days, your largest water volume, and your real use pattern.
Adjust for Climate
Climate can change the entire answer. A chiller that works well in a cool indoor room may struggle outdoors in summer heat.
Your chiller is not only cooling the water once. It is constantly fighting heat coming from the air, sun, tub walls, ground, and users’ bodies.
Indoor Rooms
Indoor setups are easier to size because the surrounding air stays more stable. If the room is climate-controlled, the chiller does not need to fight large temperature swings.
This is why a 1/2 HP unit can work well for many standard home tubs indoors. The system has a predictable cooling load.
Outdoor Shade
Outdoor shade is better than direct sun, but it still adds heat. Warm air, wind, and ground contact can all push heat back into the tub.
If your tub is outdoors, consider sizing up one class. A shaded outdoor 100–150 gallon tub may perform better with 1 HP than with a smaller chiller if summer temperatures are high.
Hot Summer Areas
If your average summer temperature rises above 90°F / 32°C, choose with more caution. The chiller has to reject heat into already-warm air, so cooling becomes less efficient.
Ask for performance at your expected summer air temperature. Do not apply a fixed horsepower minimum without considering water volume, shade and insulation.
Direct Sun
Direct sun is one of the easiest ways to overload a small chiller. Sunlight heats the water surface, tub wall, and surrounding materials.
Shade, a cover, and better insulation can reduce the load dramatically. In many cases, improving the setup is more effective than simply buying a bigger chiller.

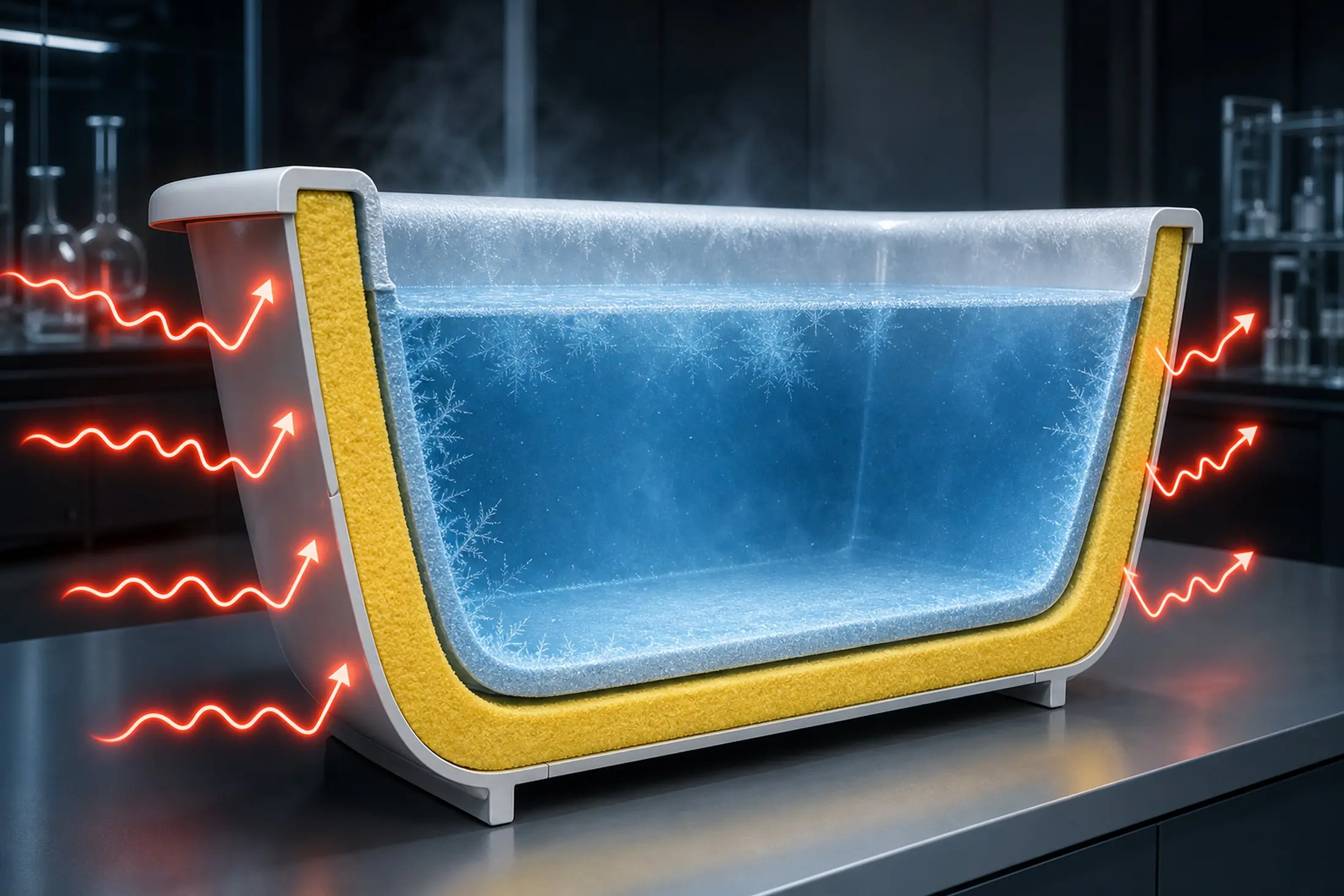

Look at Insulation
Insulation controls how much heat leaks back into the water. A well-insulated tub lets the chiller rest. A poorly insulated tub forces it to run longer.
This affects cooling speed, energy use, noise, and compressor stress.
Tub Walls Matter
Thin, uninsulated tub walls lose cold quickly. This is common with basic stock tanks, inflatable tubs, and DIY setups.
If your tub has poor insulation, size up or improve the tub before expecting perfect performance. A small chiller on a high-heat-loss tub may never feel powerful enough.
A Lid Changes Everything
An insulated lid is one of the most useful upgrades for any cold plunge. It reduces heat gain through the open water surface when the tub is not in use.
Without a lid, warm air and sunlight continuously add heat. With a tight cover, the chiller can maintain temperature with less runtime.
Ground Contact Adds Heat
A tub sitting on hot concrete, decking, or outdoor flooring can gain heat from below. This is easy to overlook.
If your plunge sits outside, try to reduce direct contact with hot surfaces. A stable insulated base can help lower the cooling load.
Count Daily Users
A chiller must recover after every plunge. When a person enters the water, body heat warms the tub, and water movement mixes warmer layers into the system.
One user per day is very different from five users in a row.
One User
For one person using the plunge once daily, slower recovery may be acceptable. The chiller has plenty of time to bring the water back to target temperature before the next session.
This is where 1/3 HP or 1/2 HP can make sense, depending on water volume and climate.
Family Use
When several people use the same tub, the water warms faster. The chiller needs enough reserve power to recover between sessions.
A 1/2 HP unit may still work for moderate home use, but 1 HP gives more comfort if the tub is large or used often.
Gym or Spa Use
Commercial and semi-commercial settings need a different standard. A recovery studio, gym, spa, or wellness center may have repeated users throughout the day.
Confirm recovery time at the busiest realistic schedule, along with water treatment and service requirements. FOCEEDO 1 HP or 2 HP units may suit some lower-frequency shared settings, but continuous commercial use needs a separate assessment.

Check Water Flow
Cooling power only matters if water moves through the system properly. Poor circulation can make a strong chiller feel weak. The chiller, pump, filter, hose size, and tub layout must work together as one loop.
Flow Helps Cooling
Moving water improves heat exchange. It brings warmer water to the chiller and returns colder water to the tub.
Good circulation also reduces temperature layers inside the tub. Without water movement, the plunge may feel uneven even if the chiller is running.
Low Flow Creates Problems
Weak flow can come from a small pump, clogged filter, restricted hose, tight bends, or poor fittings. When flow drops, the chiller cannot move heat efficiently.
In extreme cases, low flow can create freezing risk inside parts of the system. This is why pump matching and filter maintenance matter.
Filters Add Resistance
Filtration keeps water cleaner, but it also adds resistance to the loop. A dirty filter can quietly reduce cooling performance.
If your chiller cools slowly after working well before, check the filter and water path first. The problem may not be horsepower.
Plan Power and Placement
Chiller placement affects safety, airflow, noise, and service life. A good location makes the system easier to use and easier to maintain. Do not hide the chiller in a tight corner just because it looks cleaner. It needs air and access.
Use GFCI Protection
Any electrical equipment near water should use proper grounded power and GFCI protection. A GFCI outlet can cut power quickly if it detects a fault. This is not an optional detail. It is part of basic cold plunge safety.
Leave Air Space
A chiller removes heat from water and releases it into the surrounding air. If the condenser vents are blocked, cooling performance drops. Leave open space around the chiller. Hot trapped air makes the machine work harder.
Think About Noise
Compare measured sound levels and the conditions used to measure them. Compressor and fan design, operating mode and placement all affect the noise you hear.
Keep Service Access
You need room to clean filters, check hoses, drain water, and inspect fittings. A setup that is hard to access is harder to maintain. Plan the space before installation to prevent small problems from becoming expensive.
Avoid These Mistakes
Most sizing problems come from choosing for best-case conditions. Real setups are usually warmer, busier, and less insulated than buyers expect. A correct chiller size should work on normal bad days, not only on perfect days.
Buying Only by HP
Horsepower is helpful, but it is not the whole story. Always compare cooling capacity, tub volume, target temperature, and installation conditions. If two chillers have the same HP, check their actual BTU/hr rating and design details.
Ignoring Summer Heat
A chiller that feels strong in spring may struggle in July. Hot air lowers real cooling performance and increases heat gain into the water. If your tub is outdoors in a hot region, size up before summer exposes the weakness.
Forgetting the Lid
An uncovered tub loses cold continuously. The chiller then has to cool the water and fight constant heat gain at the same time. A good lid may reduce runtime more than many buyers expect. It is one of the simplest ways to improve performance.
Choosing Too Small
An undersized chiller may run constantly, cool slowly, miss your target temperature, and wear harder over time. This is the most common mistake. If your setup has several demanding factors, choose the larger class.
Oversizing Without Need
Oversizing can also be wasteful. A large chiller may cost more, take up more room, and create more sound than a small home setup needs. The goal is not the biggest chiller. The goal is the right cooling margin for your real use.
Final Size Guide
If you only remember one thing, remember this: your chiller size should match the hardest normal condition your tub will face.
That means your largest water volume, warmest season, lowest target temperature, weakest insulation, and busiest use pattern.
If You Want the Simple Answer
Use this quick rule:
- E03 — 1/3 HP: 200–300 L (53–79 US gal).
- E05 — 1/2 HP: 300–500 L (79–132 US gal).
- E10 — 1 HP: 500–700 L (132–185 US gal).
- E20 — 2 HP: 700–1,000 L (185–264 US gal).
This gives you a practical first filter before comparing specific models.
If You Want the Safer Choice
Size up one class if your setup includes several stress factors. These include outdoor placement, summer heat above 90°F / 32°C, target temperature below 40°F / 4°C, poor insulation, or multiple daily users.
Sizing up does not mean buying blindly. It means giving the system enough reserve power to perform when conditions are not ideal.
If You Want the Lowest Running Cost
The lowest running cost does not always come from the smallest chiller. A small unit running constantly may use more energy and create more wear than a correctly sized unit that cools faster and rests.
The best efficiency usually comes from correct sizing, an insulated tub, a tight lid, clean filters, and good airflow around the chiller.
A cold plunge chiller is not just a cooling box. It is part of a full water system. When the chiller size, water volume, insulation, airflow, circulation, and use pattern all match, the water stays colder with less effort and the whole setup becomes easier to live with.
Frequently Asked Questions
What size chiller do I need for my cold plunge?
Use actual water volume first. FOCEEDO’s recommended ranges are E03: 200–300 L; E05: 300–500 L; E10: 500–700 L; E20: 700–1,000 L. Then confirm cooling time for your target temperature, climate and usage.
Is 1/2 HP enough for a cold plunge?
It can be. FOCEEDO E05 is recommended for 300–500 L, but another 1/2 HP model may differ. Check reference cooling time, summer conditions and insulation before choosing.
Is 1 HP too much for a cold plunge?
Not necessarily. A 1 HP model may shorten cooldown in a smaller tub or serve a larger water volume. Compare that benefit with the purchase cost, available space and your schedule; FOCEEDO E10’s recommended range is 500–700 L.
Should I compare horsepower or BTU?
Compare both, but give more weight to BTU/hr . Horsepower is a rough compressor label, while BTU/hr shows how much heat the chiller can remove from the water. Also check pump flow, filter resistance, airflow, heat exchanger design, and your real installation conditions.
How long does a cold plunge chiller take to cool water?
Most properly sized chillers take several hours to cool a cold plunge from warm fill water to a usable cold temperature. The exact time depends on water volume, starting temperature, chiller capacity, air temperature, insulation, and target temperature. A small tub with a strong chiller may cool quickly. A large outdoor tub in hot weather may take much longer, especially if it has no insulated cover.
Is a 1/4 HP chiller enough for a cold plunge?
Only the specific model’s performance data can answer that. Check its recommended water volume, target temperature and ambient conditions. Do not assume a universal 300 L limit from the 1/4 HP label.
